110SA

Home   >  110SA

List Price

$9.15 / FT.

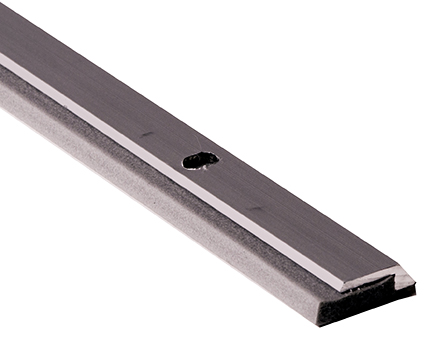

Anodized Aluminum Silicone Sponge Seal

Product Features

  • Aluminum Alloy 6063, T5 Temper
  • Synthetic Rubber Polymer: Siloxane Closed Cell Sponge
  • Excellent Flexibility and Memory
  • Flame-Resistant
  • Moisture-Resistant
  • Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
  • Excellent Resistance to Ozone, UV and Aging
  • Recommended for Areas Using FM200 or Halon Fire Suppression Systems
  • BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
  • #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
  • Screw Holes Slotted for Adjustment
  • Patent Pending Microcellular Silicone
  • Silicone is Black
  • Anodized Aluminum

Standards

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

  • POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.

  • AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.

  • SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.

  • ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Options
